Specifikim
# | artikull | parametër | vërejtje | ||
1 | Kapaciteti nominal | 90Ah | (25±2)°C, Standard Charge And Discharge | ||
2 | Typical Voltage | 3.2V | |||
3 | AC Impedance Resistance(1KHz) | .50.5mΩ | |||
4 | Standard Charge And Discharge | Charge/Discharge Current | 1C/1C | (25±2)°C | |
Cut Off Voltage Of Charge/Discharge | 3.65V/2.5V | ||||
5 | Maximum Charge/Discharge Current | Continuous Charge/Discharge | 1C/1C | According to continuous/ pulse charge and discharge ammeters | |
Pulse Charge/Discharge(30s) | 3C/3C | ||||
6 | Recommended Scope Of SOC | 10%~90% | N.A | ||
7 | Temperatura e Karikimit | 0°C~55°C | According to continuous/ pulse charge and discharge ammeters | ||
8 | Temperatura e shkarkimit | -20°C~55°C | |||
9 | Temperatura e ruajtjes | Short Term ( Within 1 month) | -20 ° C ~ 45 ° C |
N.A | |
Long Term ( Within 1 year) | 0 ° C 35 ° C | ||||
10 | Storage Humidity Range | <95% | |||
11 | Self-discharge rate per month | ≤3%/month | Temperature: (25±2)°C,Storage Scope Of SOC: 30%~50%SOC | ||
12 |
dimension | Gjerësia | 130.3±0.5mm |
Refer to Appendix ǀ | |
13 | Thickness( 30% SOC) | 36,7 ± 0,5 mm | |||
14 | High( Total) | 200,5 0,5 mm | |||
15 | High( Subject) | 195.5 ± 0.5 mm | |||
16 | Tabs Distance | 67.0 ± 1.0 mm | |||
17 | Pesha e baterisë | 1994±50g |
Attentions
- It is necessary to ensure that the voltage, current and temperature of the cell are monitored and protected when the cell is charged and discharged.
- Please keep the cell away from heat source, fire source , strong acid, strong alkali and other corrosive environment.
- Do not short connect or install the battery with incorrect polarity at any time.
- Do not mix up with cells from different models or manufacturers.
- Do not use external force to make the cell fall, impact, puncture, do not disassemble the cell or change the external structure.
- Please keep the cell’s charge under 30% ~ 50%SOC, and avoid direct sunlight or high temperature and humidity environment when the battery is not used for a long time,
- Please wear protective devices such as rubber gloves when operating the battery.
Please immediately stop using if there have leakage, smoking or damage with cell , and contact our company to deal with.
Aplikacion
Fabrika jonë

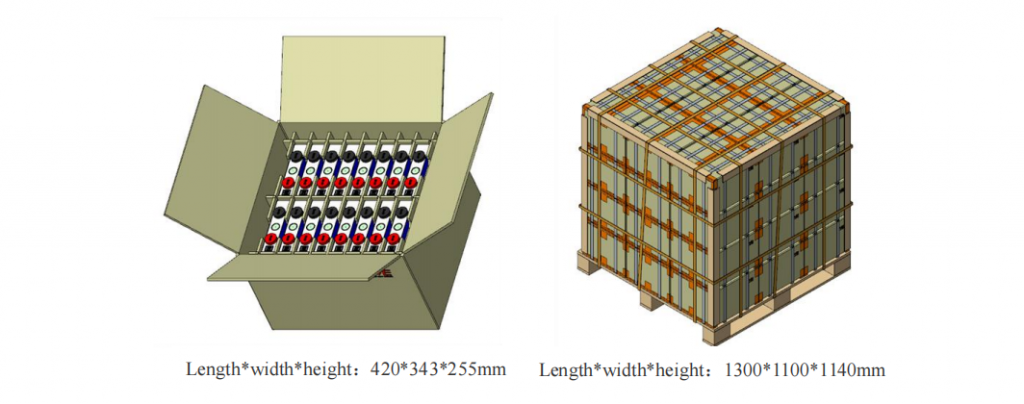

Paketimi dhe Transporti
The cells should be packed into boxes under the charge of 30% ~ 50%SOC. During the transportation, they should be protected from severe vibration, shock , extrusion, sun or rain.
ruajtje
Cells should be stored (more than 1 month) indoor with a dry and clean environment at 0 ℃~35 ℃, and charged and discharged every 6 months. Keep the last charge under 30% ~ 50%SOC.
FAQ
Q1. A mund të kem një urdhër mostër?
A. Po, ne mirëpresim urdhrin e mostrës për të provuar dhe kontrolluar cilësinë.
Q2. Po për kohën e plumbit?
A. Shembullit i duhen 3 ditë, koha e prodhimit në masë kërkon 5-7 javë, kjo varet nga sasia e porosisë.
Q3. Keni ndonjë kufi MOQ?
A. Po, ne kemi MOQ për prodhimin në masë, kjo varet nga numrat e pjesëve të ndryshme. Renditja e mostrës 1 ~ 10 copë është në dispozicion. MOQ i ulët, 1 copë për kontrollimin e mostrës është në dispozicion.
Q4. Si i dërgoni mallrat dhe sa kohë duhet për të mbërritur?
A. Zakonisht duhet 5-7 ditë për të mbërritur. Transporti ajror dhe detar është gjithashtu opsionale.
Q5. Si të vazhdoni me një urdhër?
A. Së pari na tregoni kërkesat ose aplikacionin tuaj. Së dyti, Ne japin kuotën e duhur sipas kërkesave tuaja ose sugjerimeve tona. Tretë klienti konfirmon mostrat dhe vendos një depozitë për porosi zyrtare. Së katërti Ne rregullojmë prodhimin.
Q6. A është në rregull të shtypni logon time në produkt?
A. Po. Ju lutemi të na informoni zyrtarisht përpara prodhimit tonë dhe konfirmoni së pari modelin bazuar në mostrën tonë.
Q7.Cilat certifikata keni?
A: Ne kemi CE / FCC / ROHS / UN38.3 / MSDS ... etj.
Q8.Si në lidhje me garancinë?
A: 3 vjet garanci
