Specifikim
Elektrike | Tensioni nominal | 12.8V |
Kapaciteti nominal | [email protected] | |
energji | 3840Wh | |
Rezistenca e brendshme | ≤35mΩ | |
Jeta e ciklit | 2000-6000 Cycles @ 0.2C Charging/Discharging ,Until 70% Capacity | |
Shkarkimi vetjak | .53.5% në muaj në 25 | |
Karikimi Standard | Max. Tensioni i ngarkimit | 14.0 ~ 14.6V |
Modaliteti i karikimit | Në 0 ℃ ~ 45 ℃ temperatura, e ngarkuar në 14.6V në një rrymë konstante prej 0.2C, dhe pastaj, ndryshoi vazhdimisht me tension të vazhdueshëm prej 14.6V derisa rryma të mos ishte më shumë se 0.02C | |
Rryma e karikimit | 100A | |
Maks. Rryma e karikimit | 100A | |
Shkarkimi standard | Shkarkimi i rrymës | 100A |
Maks. Rryma e vazhdueshme | 100A | |
Maks. Rryma e Pulsit | 200A (<3S) | |
Shkarkimi i tensionit të prerë | 10.0 | |
Gjendja e funksionimit | Temperatura e ngarkimit | 0 ℃ në 45 ℃ (32 ℉ në 113 ℉) @ 60 25% Lagështia relative |
Temperatura e shkarkimit | -20 ℃ në 60 ℃ (-4 ℉ në 140) @ 60 ± 25% Lagështia relative | |
Temperatura e ruajtjes | 0 ℃ në 45 ℃ (32 ℉ në 113 ℉) @ 60 25% Lagështia relative | |
Rezistenca ndaj pluhurit të ujit | IP55 | |
strukturë | Qelizë dhe format | 4S1P, prismatic |
Zorrë | Plastike | |
Dimensioni (L * W * H * TH) | 522*270*217*217mm | |
peshë | Approx. 27.5Kg | |
Terminal | M8 |
Can add LCD fuel gauge.
Can add Control switch.
Can add Coulomb lamp display.
Can add USB connector.
◆ Përdorimi i teknologjisë së qelizave të fosfatit të hekurit litium, siguri superiore, mijëra cikle, 100% DOD, në kushte normale.
Protection Mbrojtje automatike e integruar për mbingarkesë, mbi shkarkim, mbi rrymën dhe mbi temperaturën.
◆ Pa mirëmbajtje.
Balan Balancimi i brendshëm i qelizave.
Weight Pesha më e lehtë: Rreth 40% 50% e peshës së një baterie të krahasueshme me acid plumbi.
◆ Mund të karikohet duke përdorur shumicën e ngarkesave standarde të acidit plumb (të vendosur).
Range Diapazon më i gjerë i temperaturës: -20 ℃ ~ 60.
◆ Support for Series application expansion (up to 51.2V) and two in parallels.
Fabrika jonë

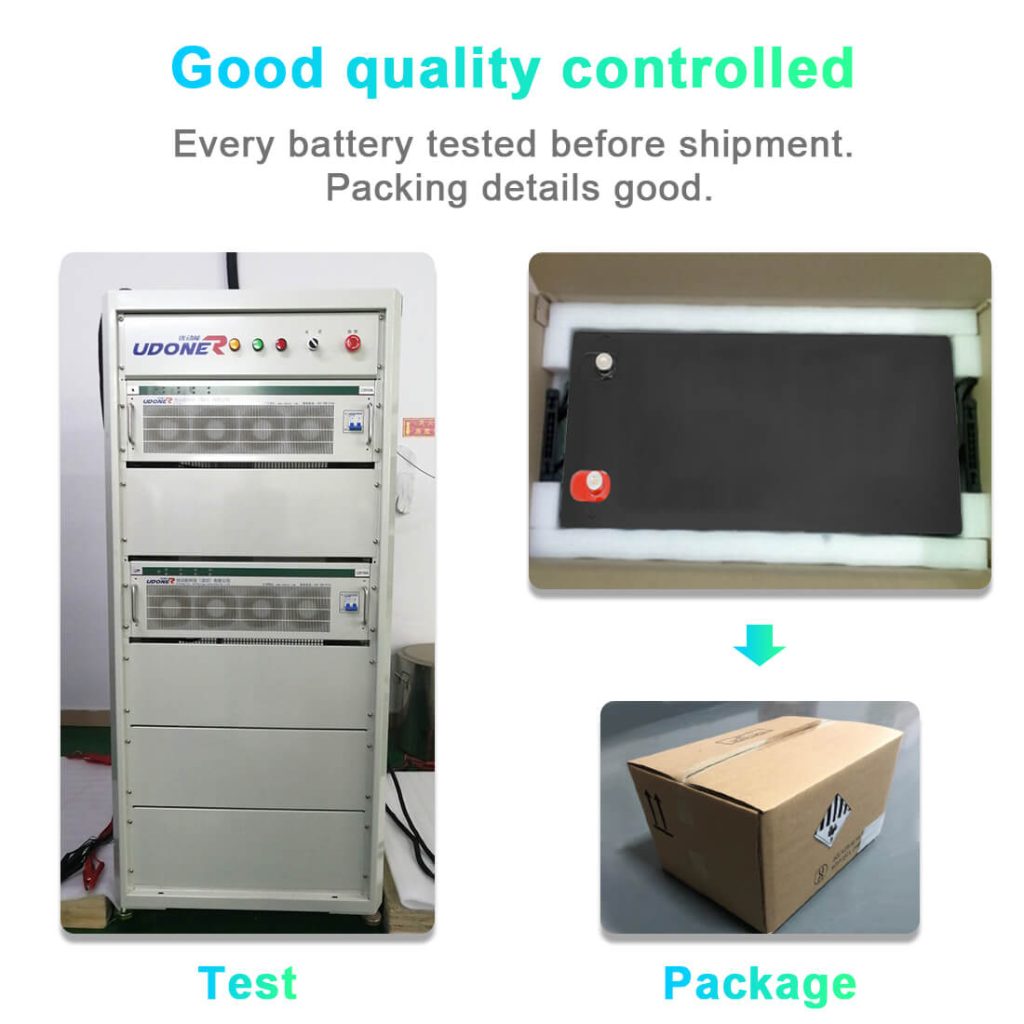

Paketimi dhe Transporti
FAQ
Q1. Is it OK to print my LOGO on the product?
A. Po. Ju lutemi të na informoni zyrtarisht përpara prodhimit tonë dhe konfirmoni së pari modelin bazuar në mostrën tonë.
Our factory supports Customized: case, size, battery structure, logo, packaging etc.
Q2. Can I have a sample order?
A.Yes, we welcome sample order to test and check quality.
Low MOQ, 1pc for sample checking is available.
Q3:Which product is hot sale in your company?
A: LiFePO4 battery 24Ah,50Ah,100Ah,200Ah,280Ah,300Ah; 12V,24V, 48V LiFePO4 battery pack and so on.
Q4. What about the lead time?
A. Sample needs 3-7 days, mass production time needs 7-20 days, it depends on order quantity.
Q5. Si të vazhdoni me një urdhër?
A. Firstly let us know your requirements or application. Secondly, We quote according to your requirements or our
suggestions.Thirdly customer confirms the samples and places a deposit for formal order. Fourthly We arrange the production.
Q6.Which certificates do you have?
A: Ne kemi CE / FCC / ROHS / UN38.3 / MSDS ... etj.
Q7.How about warranty?
A:3-5 year warranty
Q8: Are these battery packs compatible with my inverter?
A: Yes, Sir. Our battery pack is compatible with most brands of inverters on the market.
Contact us and let me tell you more.
Q9. How do you ship the goods and how long does it take to arrive?
A.It usually takes 5-7 days to arrive. Train and Airline and Sea(DDP) shipping is also optional.
Q10: How do I know whether you've shipped my order or not?
A: Tracking No. will be offered as soon as your order be shipped out. Before that, our sales will be there to check the packing
status, photo you the done order and let you know the forwarder picked it up.
