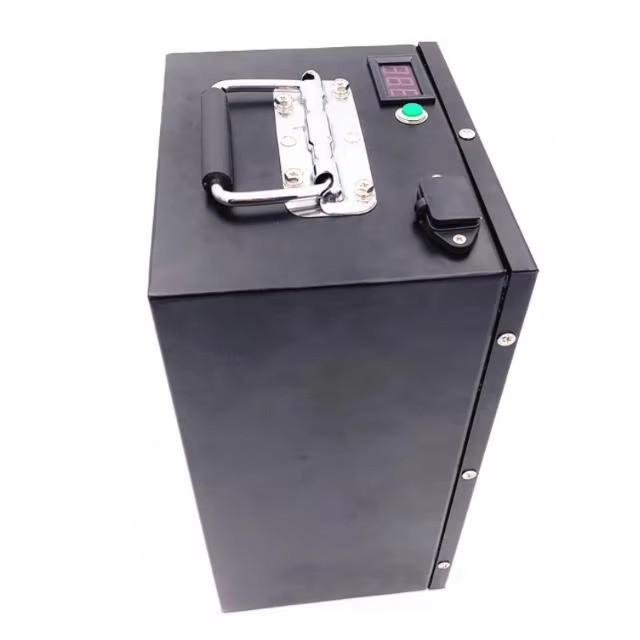

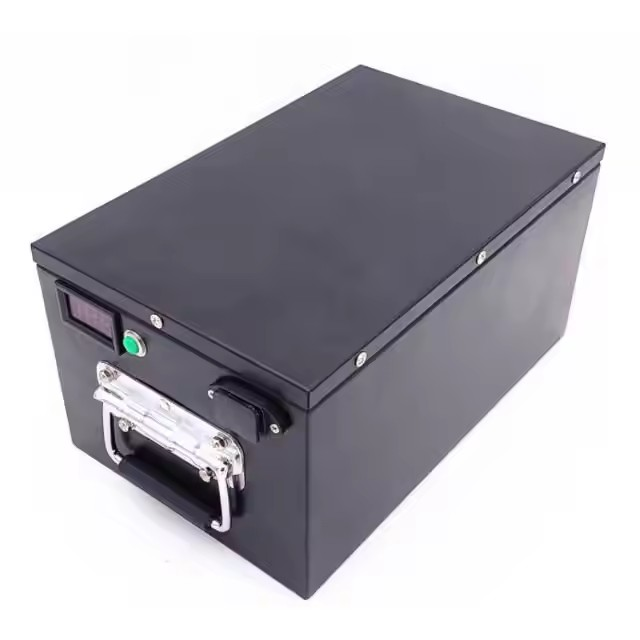

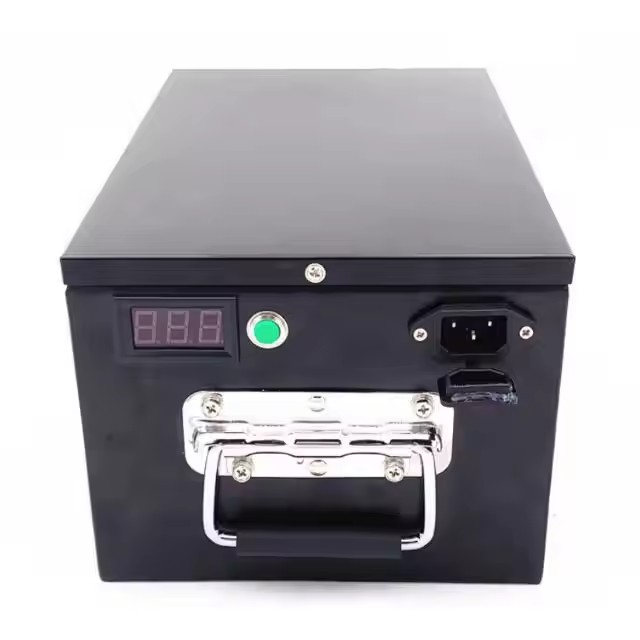

60V 100Ah LiFePO4 Lithium Ion Battery For AGV Smart Robot

2025-01-13 05:29

Specifikim

artikull	Specifikim	shënim
Tensioni nominal:	60V	Any voltage can be customized
Nominal Capacity:	100AH	Any capacity can be customized
Discharge Cut-Off:	47.5 V
Charge Cut-Off:	69.3V
Charge Current:	30A	Free customization service
Cont. Discharge:	100A	Free customization service
Peak Discharge:	200A	Free customization service
Pengesë:	M200mΩ
Charge Temperature:	0℃ - 45℃
Discharge Temperature:	-20℃ - 60℃
Charge Method:	CC / CV
Life Cycle:	6000 times	80% DOD, Max. 100% DOD
BMS:	With BMS
Përmasa:	Flexible	Any dimension can be customized
Pesha:	120KG

Features

• More than 6000 Cycles
  • Battery modules available for parallel and series for higher voltage and capacity
  • BMS Passive cell balance function
  • IP66, IP67, water proof, dust proof, Temperature monitoring
  • Customization for Size and Discharge and charge rate
  • Free of Maintenance, contains no poisonous material
  • No leakage, no hazardous chemistry
  • Quick delivery
  • Lighter in weight, smaller in size to save space.
  • Powerful to increase robust operation for your marine boat or RV
  • Fast charging and high power discharge rate available
  • No need to add water nor worry about maintenance.
  • We offer 5 years regular warranty and it can be extended up to 10 years.

BMS e integruar

artikull	Content	Criterion
Over charge Protection	Over charge detection voltage	3.6~4.25V
	Over charge detection delay time	0.1 S ~ 6S
	Over charge release voltage	3.5~4.25V
Over discharge protection	Over discharge detection voltage	2.0~3.3V
	Over discharge detection delay time	0.1 S ~ 6S
	Over discharge release voltage	2.1~3.4V
Charge Mbi mbrojtjen aktuale	Charge Over current detection current	1~100A
	Charge Over current detection delay time	0.02S~ 6S
shkarkim Over current protection	Discharge Over current detection current	1~600A
	Discharge Over current detection delay time	0.02S~ 6S
Shkurt protection	Short protection detection delay time	100 u S
	Detection condition	B+ P-0.2 Omh
	restore	Cut off load
Interior Resistance	Main loop electrify resistance	2 OMh(50A)
Current consumption	Current consume in normal operation	1.5mA Type
Current consumption	Current consume in sleep operation	2 uA Type

Note BMS is customizable. More advanced functions available, such as Bluetooth, RS485, CAN, Autocratically Heating functions, High temperature shut off, Low temperature shut off, BMS protocol available etc. Contact us for more details!

LIFEPO4	përmasat	peshë	with BMS	RS485/Bluetooth	Cycles	garanci
60V 10AH	195*165*175mm	9.5kg	po	në dispozicion	6000times	5 vite
60V 20AH	330*175*220mm	19 kg	po	në dispozicion	6000times	5 vite
60V 30AH	407*175*235mm	25 kg	po	në dispozicion	6000times	5 vite
60V 40AH	407*175*235mm	28 kg	po	në dispozicion	6000times	5 vite
60V 50AH	525*240*215mm	44kg	po	në dispozicion	6000times	5 vite
60V 120AH	420*360*550mm	84kg	po	në dispozicion	6000times	5 vite
60V 200AH	1000*600*182mm	156kg	po	në dispozicion	6000times	5 vite

Self-heated Function (Optional)
To relieve winter range anxiety in some freezing environment, the BMS can bring with
self heating function. Resistance heating rapidly warms the inside of battery.
Start heating temperature:≤0°C. Stop heating temperature:≥10°C.
Can improve battery charge / discharge performance.

Aplikacion

Fabrika jonë

ALL IN ONE is a lithium battery Manufacturer for over 15 years, recognized by customers from

Australia,Europe and North America.We offer Top quality with very good price for lithium lifepo4 batteries!



FAQ

1.P: A e mbështesni një porosi mostër?

Përgjigje: Po, mirë se vini të porosisni mostrën, ne kemi depo në Shtetet e Bashkuara dhe Evropë, disa mostra mund të dërgohen shpejt.

2.P: A ka produkti një BMS të integruar?

Përgjigje: Po, BMS inteligjente duke përfshirë JBD/PACE/SmarTec të integruar për të siguruar që bateritë të menaxhohen me zgjuarsi.

3.Q: Can your company accept customized order ?

Përgjigje: Sigurisht, personalizimi është forca jonë.

4.P: A mundet paketa e baterisë të jetë e përputhshme me invertorët në treg?

Përgjigje: Po zotëri, paketat tona janë të pajtueshme me më shumë se 20 marka inverterësh në treg duke përfshirë Victron, Goodwe, Solis, Growatts, Voltronics, Deye dhe marka të tjera të famshme.

5.P: Si është Garancia?

A: 5 years upto its usage.

6.P: A keni ndonjë certifikatë?

A: CE, UN38.3 and MSDS, Pack UL1973 is under processing.

7.P: Si është mënyra dhe koha e dorëzimit?

A: 30-50 days for customized order. Monthly production capacity 6x40HQ for standard models.

8.P: A keni fabrikë të vërtetë?

A: Yes, our factory is in Anhui. We welcome you to visit our factory.
