51.2v 65Ah golf cart lifepo4 lithium ion battery pack deep cycle IP67

2024-06-28 03:25

Specifikim

model	AIN51105W	AIN51105S	AIN5165S	AIN51150S	AIN76105S
Tensioni nominal	51.2V	51.2V	51.2V	51.2V	76.8V
Kapaciteti nominal	105Ah	105Ah	65 Ah	150Ah	105Ah
Rated Energy	5370Wh	5370Wh	3320Wh	7680Wh	5370Wh
Maximum Charge Voltage	58.4V	58.4V	58.4V	58.4V	87,6V
Rryma maksimale e tarifës	100A	100A	60A	150A	100A
Rryma maksimale e shkarkimit të vazhdueshëm	150A	150A	130A	200A	200A
Maximum Peak Discharge Current (30 seconds)	300A	300A	250A	300A	300A
Shkarkimi i tensionit të ndërprerjes	43.2V	43.2V	43.2V	43.2V	43.2V
Driving Mileage	65-80km	65-80km	40-60km	90-120km	100-130km
Temperatura e ngarkimit	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃	0 ~ + 55 ℃
Temperatura e shkarkimit	-20 ~ + 60	-20 ~ + 60	-20 ~ + 60	-20 ~ + 60	-20 ~ + 60
Cycle Life (25℃, 0.5C, 100% DOD)	> 6000	> 6000	> 6000	> 6000	> 6000
Terminals	M8 Nut	M8 Nut	M8 Nut	M8 Nut	M8 Nut
Niveli i mbrojtjes	IP67	IP65	IP65	IP65	IP65
Dimensions(mm)	547*334*245	457*298*253	465*243*228	675*325*260	674*338*275
peshë	48.3kg	49kg	32 kg	71kg	72.8kg
Communication Protocol	CAN/RS485	RS485	RS485	CAN/RS485	CAN/RS485



Karakteristikat kryesore

1, PET is able to bear 850kg, avoid bulging

2, CCS vehicle-grade craft,integrated wires

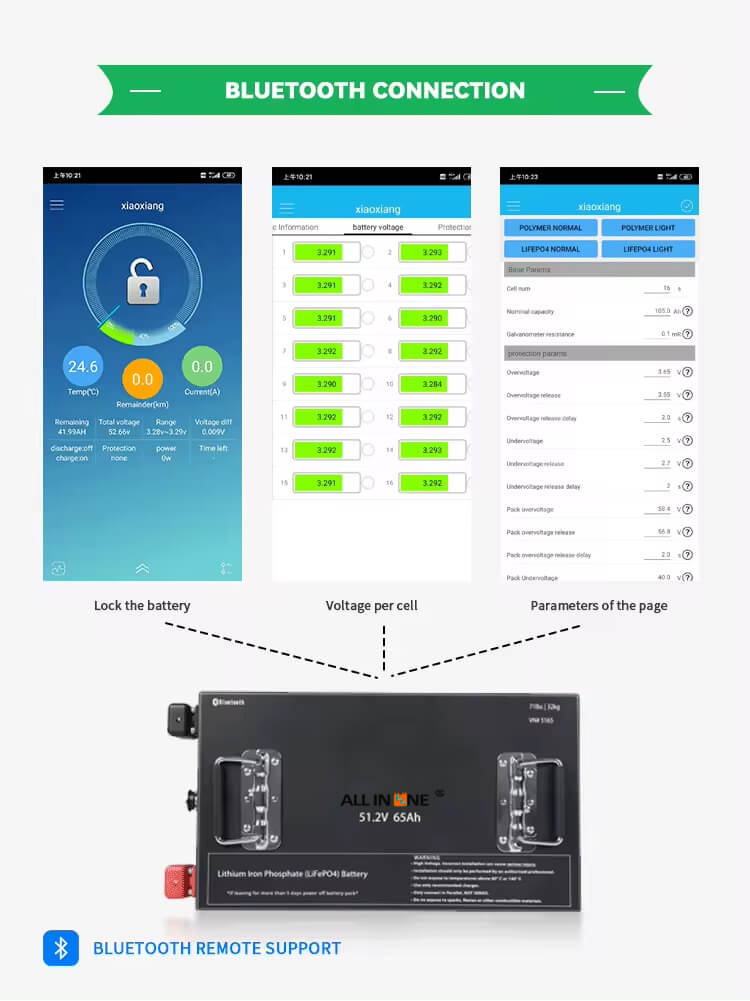

3, Support RS485/CAN/Bluetooth etc

4, 3-4mm metal plates at both side

5, Reserve 1mm width for potential bulging

6, Distributed sampling system to solve sampling impedance problem.

Premtojmë
1. Të gjitha produktet do të jenë testuar 100% para dërgesës për të siguruar që produkti nuk ka ndonjë problem cilësor.
2.We guarantee that within 12 months from the date of receipt of the goods, we will not include man-made damage. If there is any quality problem, we will provide return service.



Aplikacion

Fabrika jonë

Paketimi dhe Transporti

FAQ

Q1:Can I have samples to test? And what is the lead time for sample orders?
A1:Yes, we can supply samples, the lead time for samples is 7-10 days. and buyer pays for sample cost and shipping cost.

P2: A ofroni shërbim pas shitjes?
A2: Yes, the warranty is 3 years, if any quality problems on our side in this period, we can send a new one as a replacement.

Q3 Cili është avantazhi i kompanisë tuaj?
A3: We only supply high-level quality of battery and we guarantee on-time shipment, we also provide excellent after-sales service

P4: A e pranoni OEM / ODM?
A4: Yes, it is available.

Q5: What is your lead time for mass production?
A5: Të folurit e përgjithshëm, rreth 25-30 ditë në varësi të artikujve të ndryshëm pas marrjes së paradhënies dhe konfirmimit në lidhje me mostrat.

Q6:Are your battery real capacity?
A6: Të gjitha qelizat tona të baterisë me Shkallën A, kapacitet 100% të ri dhe real.

P7: A jeni një fabrikë apo një kompani tregtare?
A7:ALL IN ONE Battery Technology Co Ltd is a professional rechargeable lithium-ion battery and LifePO4 battery manufacturer, welcome to visit.

Pyetja 8: Çfarë lloj certifikatash keni?
A8: Ne mund të sigurojmë CE, ROHS, FCC, IEC62133, MSDS, UN38.3 nëse sasia e porosisë tuaj është e madhe.
