Specifikim
Numri i modelit | AIN HP5.1L-A1 | AIN HP7.6L-A1 | AIN HP10.2L-A1 |
Nominal Parameters | |||
tension | 48/51.2V | 48/51.2V | 48/51.2V |
kapacitet | 100AH | 150Ah | 200Ah |
energji | 5.12kwh | 7.68kwh | 10.24kwh |

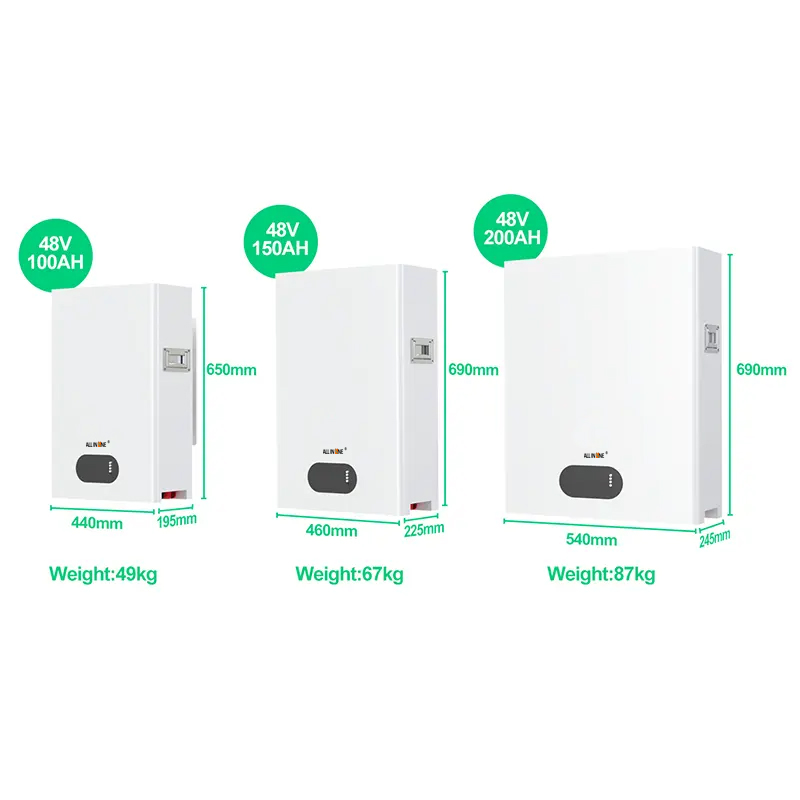

Dimensions (L xWxH) | 440x695x195mm | 460x690x225mm | 540x690x245mm |
peshë | 49kg | 67kg | 87kg |
Parametrat themelorë | |||
Life Times (25C) | 20 Years | 20 Years | 20 Years |
Life Cycles (80% DOD, 25°C) | 5000 Cycles | 5000 Cycles | 5000 Cycles |
Storage Time /Temperature | 5 months @25°C; 3 months @35°C; 1 month @45°C | 5 months @25°C; 3 months @35°C; 1 month @45°C | 5 months @25°C; 3 months @35°C; 1 month @45°C |
Temperatura e funksionimit | ""-20°C to 60°C @60+/- 25% Relative Humidity | ""-20°C to 60°C @60+/- 25% Relative Humidity | ""-20°C to 60°C @60+/- 25% Relative Humidity |
Temperatura e ruajtjes | 0°C deri në 45°C @60+/-25% Lagështia relative | 0°C deri në 45°C @60+/-25% Lagështia relative | 0°C deri në 45°C @60+/-25% Lagështia relative |
Standardi i baterisë litium | 1EC62619 (Cell&Pack), CE, CEC, RCM, UN38.3 | ||
Enclosure Protection Rating | IP31Rating | ||
Electrical Parameter | |||
Operation Voltage | 40-57.6Vdc | 40-57.6Vdc | 40-57.6Vdc |
Max charging Voltage | 58Vdc | 58Vdc | 58Vdc |
Max charging and Dis charging Current | 100A | 150A | 200A |
Fuqia maksimale | 5120 W | 7680 W | 10240 W |
Fabrika jonë
ALL IN ONE is a professional manufacturer engaged in R&D and manufacturing of clean energy, the main products include Lithium iron battery pack for 48V and high-volt solar system photovoltaic solar off-grid inverter, photovoltaic solar controller, transformers.Guangdong Eco-contain New Energy Co.,Ltd is a global clean energy solution service provider. We are committed to providing one-stop energy solutions including energy supply, energy management and energy storage to customers around the world. With strict Quality control system, we have obtained CE, MSDS, UN38.3 and so on, our batteries are sold all over the world and enjoy very good reputation in more than 40 Countries such as USA, Canada, Jamaica, UK, Germany, France, Netherlands, Belgium, Finland, Denmark, Switzerland, Australia, New Zealand, Colombia, South Korea, Japan, India, Nepal and so on.
FAQ
Pyetje: A jeni kompani tregtare apo prodhuese?
A: We are ALL IN ONE original factory.
Pyetje: A mund të kem mostra për të provuar? Dhe çfarë është koha e drejtimit për porositjen e mostrës?
A: Yes,we can supply samples,the lead time for samples is 3-5 days.and buyer pay for sample cost and shipping cost.
Pyetje: A ofroni shërbim pas shitjes?
Përgjigje: Po, garancia është 12 muaj, nëse ka ndonjë problem cilësor nga ana jonë në këtë periudhë, ne mund të dërgojmë një të re si zëvendësim.
P: A e pranoni OEM / ODM?
A: Po, është në dispozicion.
P: A jeni kapaciteti i vërtetë i baterisë?
Përgjigje: Të gjitha qelizat tona të baterisë me shkallë A, kapacitet 100% të ri dhe real.
Pyetje: kindfarë lloj çertifikatash keni?
Përgjigje: Ne mund të sigurojmë CE, ROHS, FCC, IEC62133, MSDS, UN38.3 nëse sasia e porosisë tuaj është e madhe.
P: A keni MOQ?
A: Jo e kufizuar. Porosia e vogël gjithashtu e mirëpritur. Sasia më e madhe ka çmim më të mirë, ne do të kontrollojmë çmimin më të mirë për ju.
Pyetje: Cila është afati juaj i pagesës?
Përgjigje: Ne adoptojmë mënyrën e pagesës T / T, Paypal, Alibaba etj.
Q:How about the after sales?
A: Damage in transit will be resolved according to the contract terms.
During the warranty period, if there is a problem with the product, our engineers will first propose a solution according to the
specific situation. If the product still has a problem, it will be refunded or replaced for free.
